SKU:28758922
Specifications: Model: P88-T Screen Size: 8.8inch Resolution: 480*1920 Panel Type: IPS, Normally Black Touch Function: Yes Speaker Function: No Contrast Ratio: 800:1 Surface Luminance: 600cd/m2 Viewing Angle: 178°Full View Angle Outline Dimension: 64.9×231.9×13.5(mm) Display Area: 54.72(W)×218.88(H)mm Color Gamut: 50% NTSC Display Colors: 16.7M(8-bit) Refresh Rate: 60Hz Response Time: 30 (Typ.)(Tr+Td) ms Power Supply: microUSB Port Input Voltage: microUSB 5V Interface: 1×miniHDMI, 1×microUSB Operation Temperature: -10~60℃ Please Note: About display: -1. Please connect the HDMI cable directly to the HDMI port of your computer's graphics card, and do not connect it to an adapter or docking station. Because the resolution of the display screen is special, most docking stations or adapters do not support a resolution output of 480x1920 or 1920x480. -2. Windows and mac os systems are supported, just make sure your PC has HDMI and USB ports. Adjustable horizontal and vertical screen display in display setting of PC. The default is vertical screen display. About touch: -1. Please ensure that the USB port is connected directly to PC or Raspberry Pi, the USB cable transmits power and touch signals. An external power supply will not be able to touch. -2. Mac os systems with M1 and M2 chips will not support touch. Connecting to Raspberry Pi: When used on Raspberry Pi, you need to modify the "config.txt" Add the following code to the config.txt file: max_usb_current=1 hdmi_group=2 hdmi_mode=87 hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3 Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D. What's included? 8.8inch Monitor x 1 mini HDMI Cable x 1 USB Cable x 1

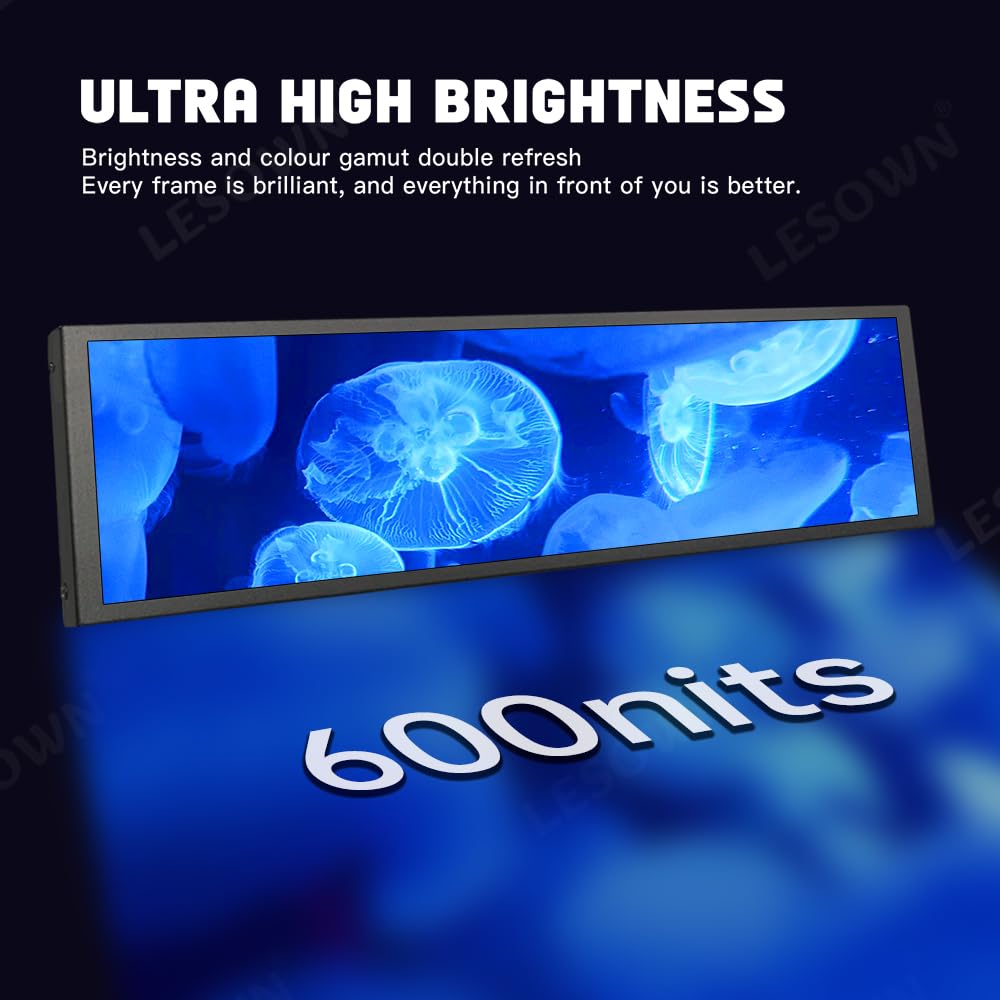

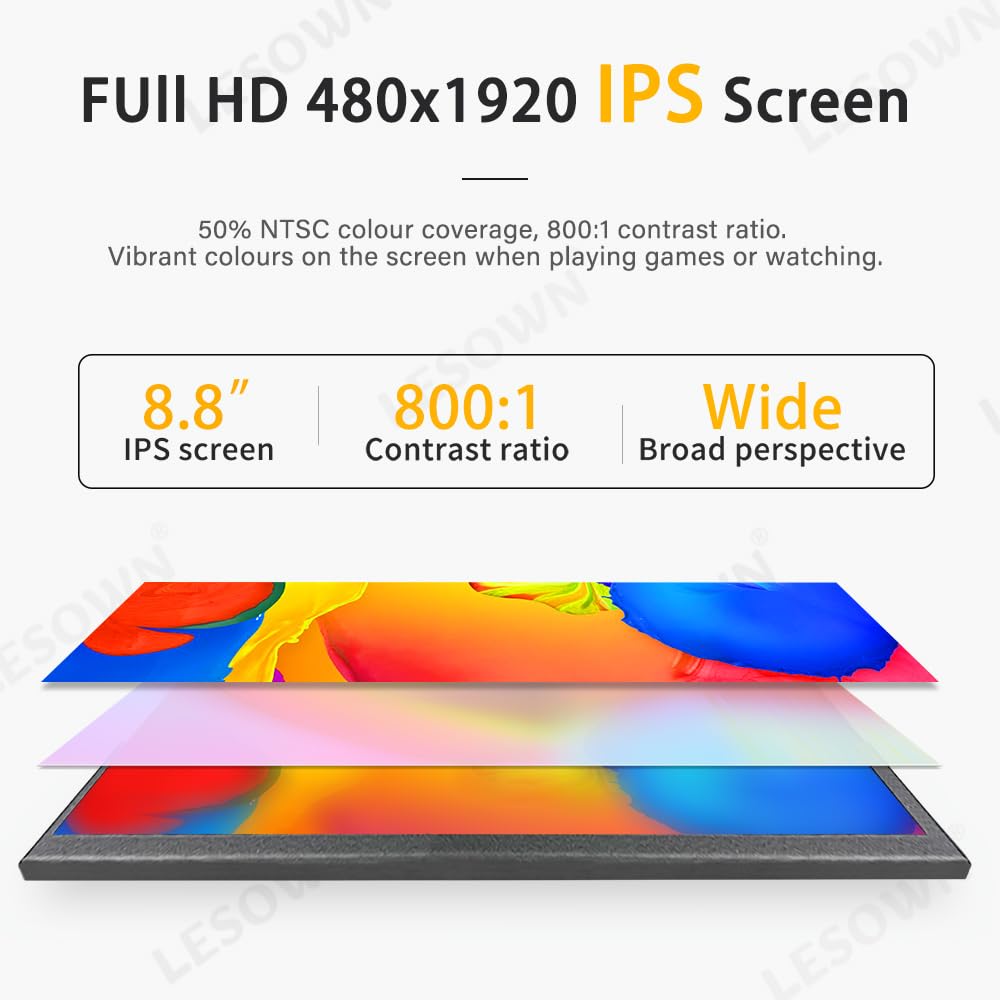

* IPS technology, Ultra-HD image clarity 8.8inch super HD 480x1920 high resolution IPS screen, excellent color reproduction and uniformity, high brightness 600cd/m², contrast ratio 8001. IPS full wider viewing angle.
* Plug & play, easy to use on PC This is a drive-free display long strip monitor on PC. 1x mini HDMI and 1x micro USB ports. HDMI supports data and signal transmission, one USB for power supply and touch.
* Portable, slim & lightweight the weight is 231g, the thickness is 13.5mm; Metal appearance; Support back-mounted Raspberry Pi or back support, and the back support is removable.
* Multi-point touch function Supports up to 5 touch points, excellent response; Tempered glass cover. For the touch function, please ensure that the USB port is connected directly to the computer. An external power supply will not be able to touch.

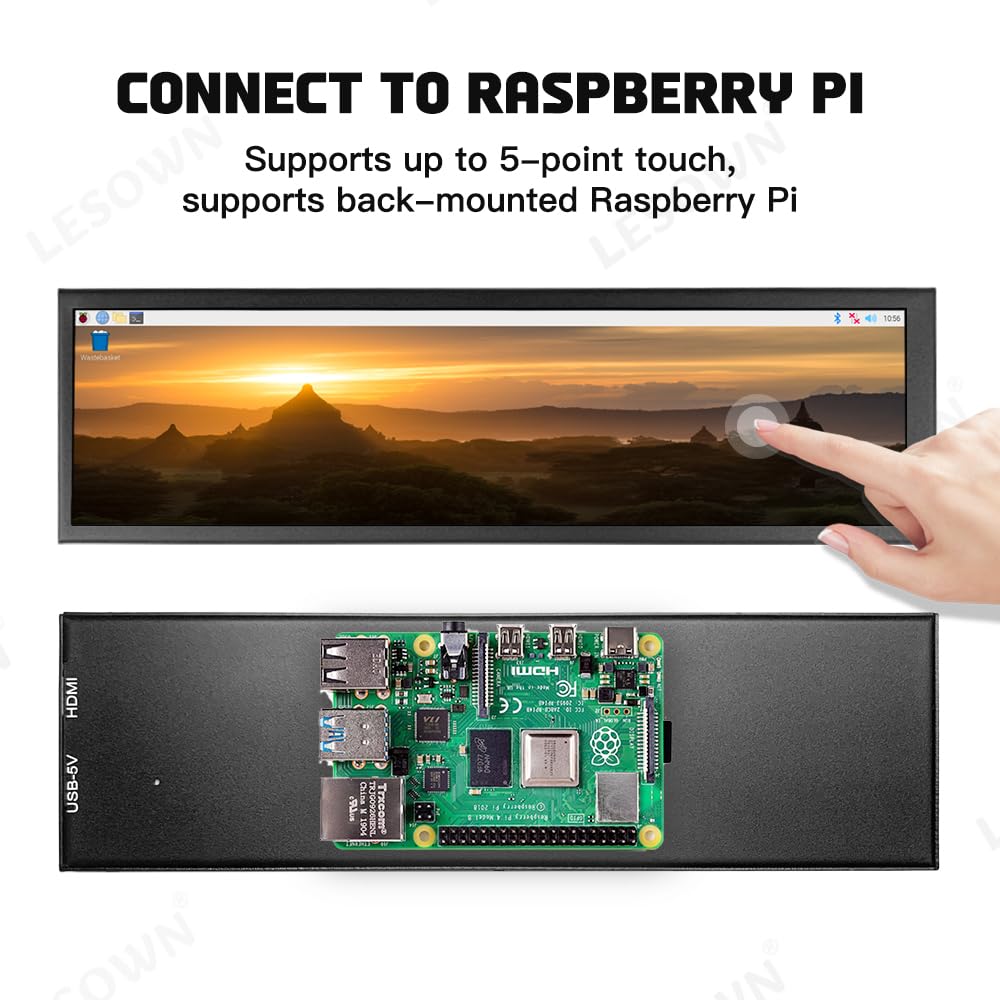

* Compatibility Supports Raspberry Pi 4/3/2/ B B+. Compatible with Windows 7/8/10 and mac os. It supports plug and play on PC, no program or software is required, but no adapters or docking stations are supported, so just make sure your computer has HDMI and USB ports. Adjustable horizontal and vertical screen display in display setting of PC.
The config.txt values are wrong. I had to use the values from a competing brand that sells the same screen under a different name
