SKU:48390211

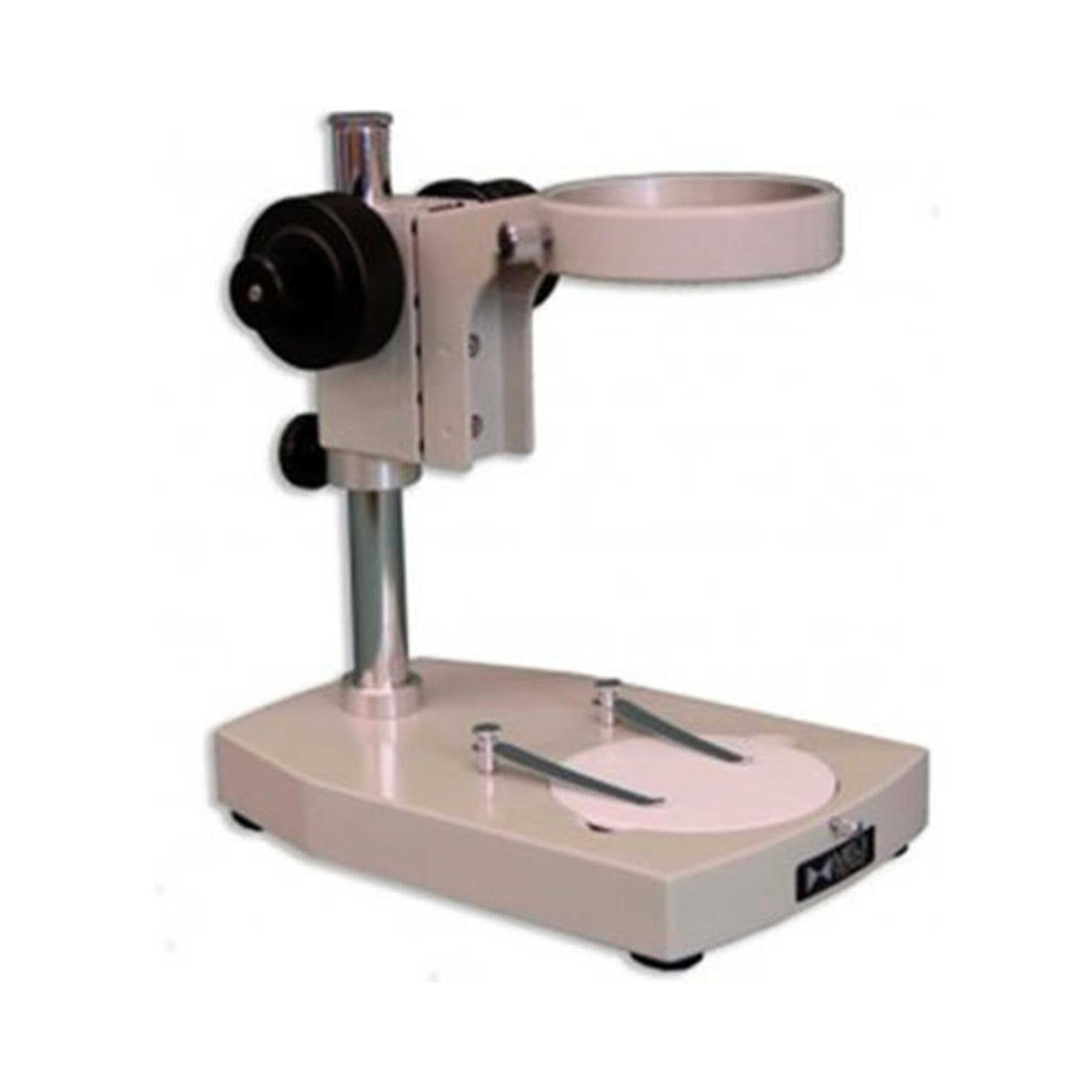

The PC Pole Stand with FC Focus Block/Holder stand in Meiji Techno America’s basic precision pole stand with "FC" focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system. NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered: • Stereo Microscope Body (Zoom, Turret or Fixed) • Eyepieces (Requires 2 of identical magnification) • Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands) • Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination) • Auxiliary Lens (Optional)
Stand With Coaxial FC Focusing Block
150mm (5.9") wide by 230mm (9.05") deep
Pillar Height 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
